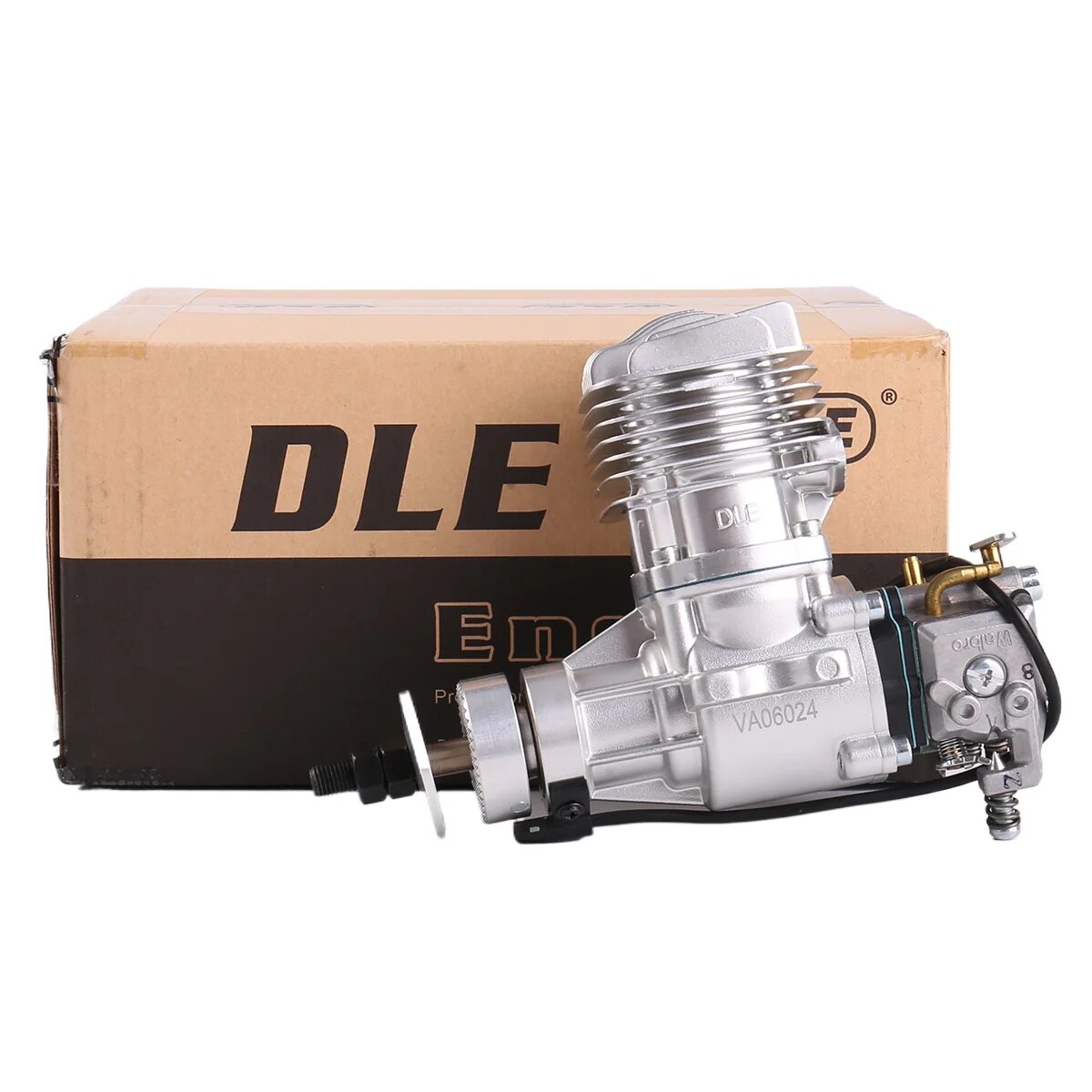

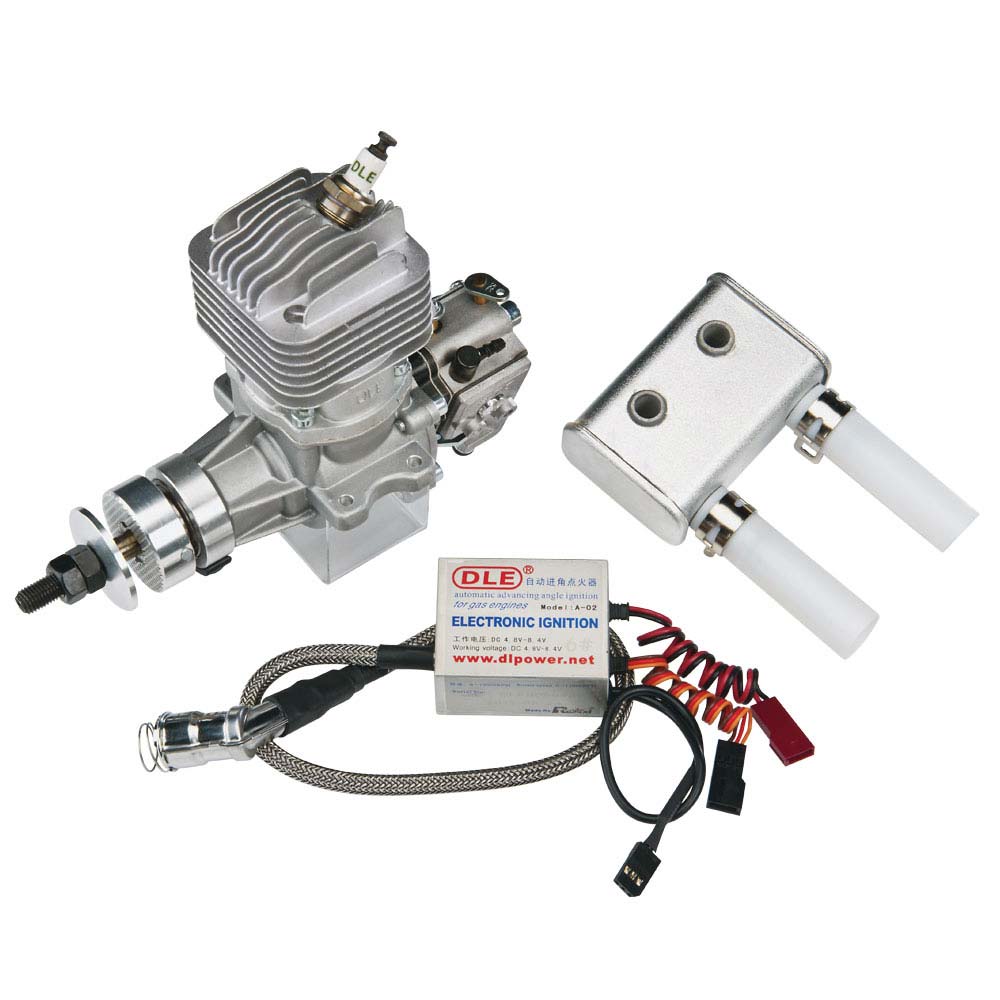

DLE 20CC DLE-20RA Gas Rear Exhaust with Electronic Ignition

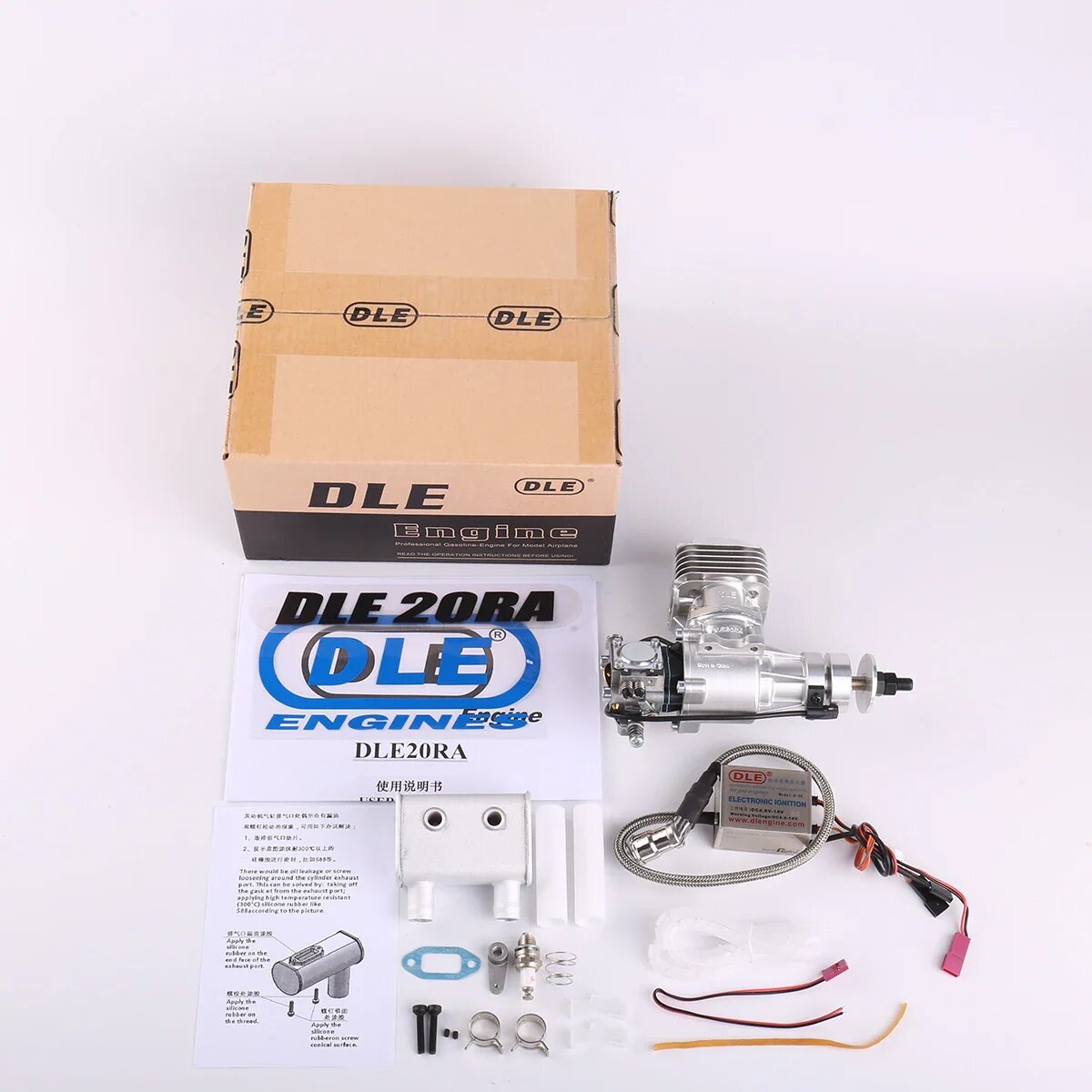

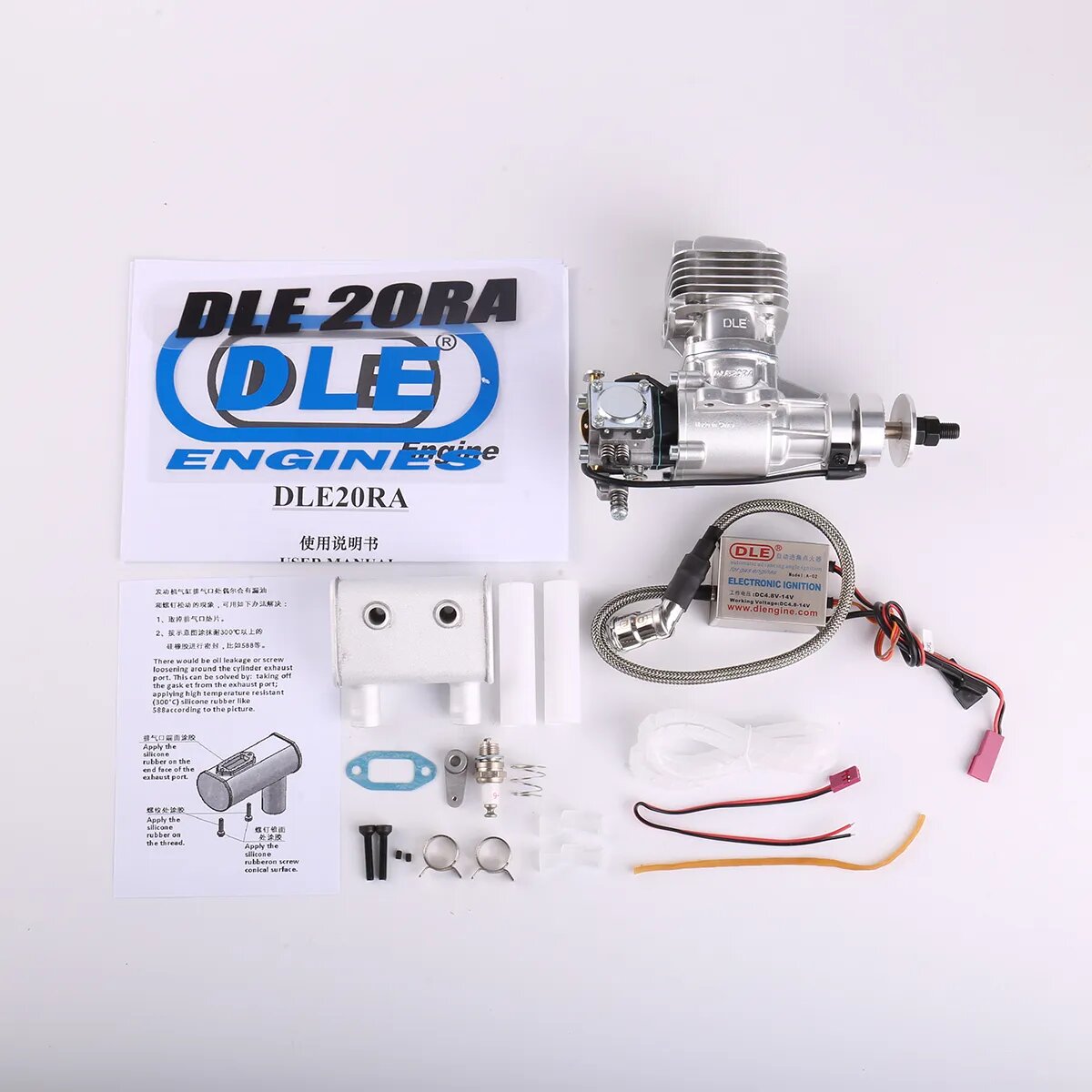

DLE 20CC DLE20RA  Two Strokes Single Cylinder Gasoline Engine for Rc Gas Airplane Model. Key Features Sealed crankshaft bearings, efficient design for lighter weight Two petal reed valve rear induction with DLE customized carburetor Redesigned piston is lighter for faster acceleration, better compression, and lower vibration Circuitry and software in electronic ignition provides better idle and improved transition, and also allows a wider range of ignition battery voltages from 4.8-8.4V Ignition Sensor available separately Rear exhaust with newly designed muffler with two outlet stingers that alloy engine to breathe better and produce more power Lightweight aluminum alloy crankcase Specifications: 2 Times Displacement: 20cc Reaming: 32mm Stroke: 25mm Compression ratio: 10.5:1 Power: 2.5hp at 9000rpm Minimum: 1750rpm Static shooting: 6kg at 100 Meters 5.3kg at 1800 meters Control unit with variable advance Control unit power: 4.8 – 5.9 Volts – 1500 mAh Tillotson carburetor, with elongated servo square Weight: Engine 650gr Ming mist 50gr Injection – 120gr Propellers: 14×10; 15×8; 16×6; 16×8; 17×6 Candle: NGK CM-6 or equivalent Mixture: 30:1 (Green Gasoline/Bel Ray Oil) In The Box (1) DLE-20cc Rear Exhaust Gasoline Engine with Electronic Ignition (1) Muffler (2) Muffler Extension Tubes with Clamps (1) Muffler Gasket (2) 4x20mm Muffler Screws (1) Spark Plug (1) Product manual
