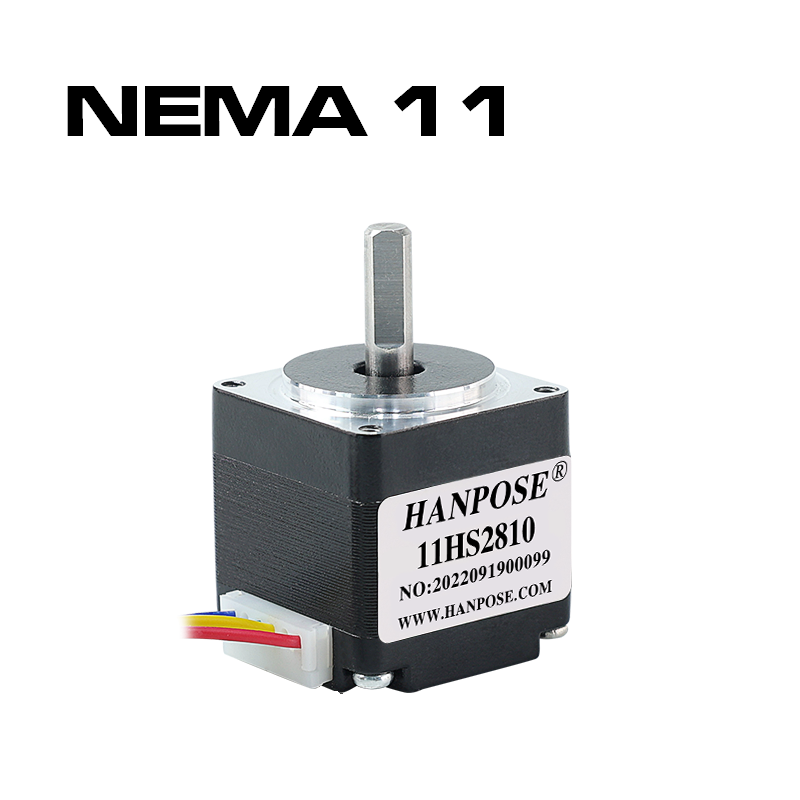

NEMA 11 Mini Stepper Motor

$ 14.74
Item Name: NEMA 11 Mini Stepper Motor Specification: 2 Phase, Step Angle 1.8, NEMA 11 PCs in Item: 1 PC Manufacturer: GuangDong, Made in China Model Step Angle Holding Torque Rated Current Phase Resistance Phase Inductance Length Shaft Length Shaft Diameter Weight 28HS28 1.8 0.08N.m 0.8A 3.2ohm 1.7mH 28mm 15mm 5mm 90g 28HS34 1.8 0.1N.m 0.8A 4.3ohm 3.3mH 34mm 15mm 5mm 120g 28HS40 1.8 0.12N.m 0.8A 5.1ohm 3.4mH 40mm 15mm 5mm 150g 28HS50 1.8 0.17N.m 0.8A 6.5ohm 6.2mH 50mm 15mm 5mm 200g

Description

(51124A-0030-F) Bullseye Glascadia Burnt Orange Opalescent with Steel Blue Opal Drizzle 90 C.O.E. Glass

Limited Edition

All stated dimensions of sheet glass are approximate. Because of the unique process and conditions of manufacturing art glass, the sheets are not perfectly square, nor are the sizes exact. Unless noted otherwise all sheet glass is approximately 1/8″ thick.

*Note On Image Accuracy: While glass is notoriously difficult to capture well in a photograph, great care is given to present glass as true-to-life as possible. Computer monitors vary widely and may not reliably portray the glass or its color.
